Straddle Carrier

Straddle carriers are primarily used for container handling in port terminals and container yards. They are designed for stacking and transporting containers and can stack containers up to four layers high. Fully loaded, these carriers can reach speeds of up to 30 km/h. The operator’s cab is positioned at the top, providing clear visibility of both the front and rear operations.

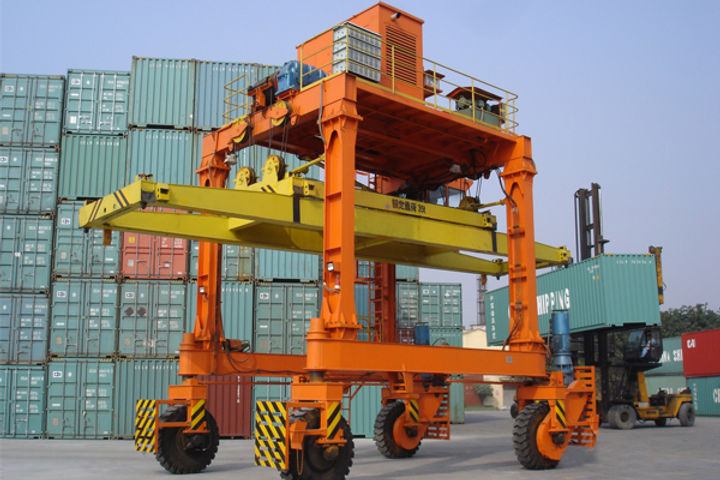

Huayuan straddle carriers typically have a rated capacity of 35 t, with a maximum design capacity of 60 t (59 long tons; 66 short tons), equivalent to handling two fully loaded containers simultaneously.

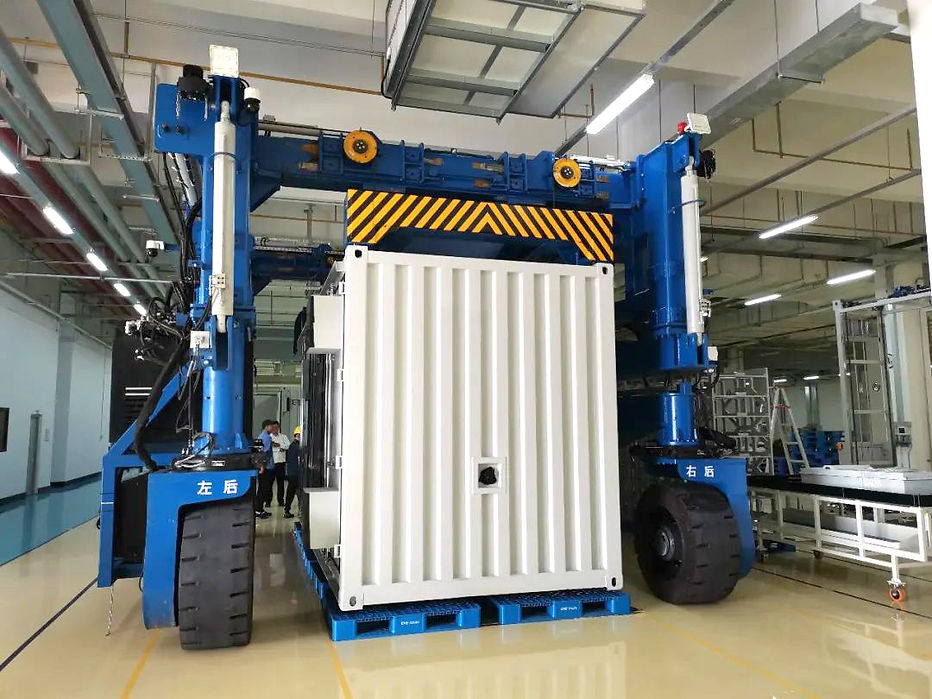

This straddle carrier is a battery-powered, multifunctional container-handling machine, representing a new generation of loading and unloading equipment independently developed by Huayuan Crane using advanced modern technology. The entire crane is powered by a lithium battery and driven by an electric motor with fully hydraulic systems, ensuring smooth operation without noise or environmental pollution.

Advanced Sensing and Automation
The straddle carrier is equipped with cutting-edge sensing and monitoring systems, enabling automatic container identification, precise positioning, movement, and loading/unloading of heavy containers. It offers high lifting synchronization accuracy, stepless speed adjustment, and strong overload capacity, significantly enhancing the safety and efficiency of logistics operations.

Superior Climbing Capability
Unlike traditional tire-mounted cranes with a 3% slope climbing limit, this straddle carrier can climb steep slopes of up to 10% when fully loaded, demonstrating exceptional operational strength.

Customized Design for Flexibility and Safety
The straddle carrier can be fully tailored to the container-handling environment according to customer requirements. It combines a refined appearance with enhanced functionality, flexibility, and safety. Its compact body and flexible steering allow free access to narrow spaces such as factory workshops, storage yards, and logistics parks. The carrier supports multiple steering modes, including:

• Straight walking and turning

• Horizontal walking with turning

• Oblique turning

• 360° in-place rotation

• Ackermann steering
  All movements are smooth and require minimal effort.

Flexible Control Options
Operators can choose between cab control and wireless remote control, with the ability to switch modes at any time for maximum convenience.
