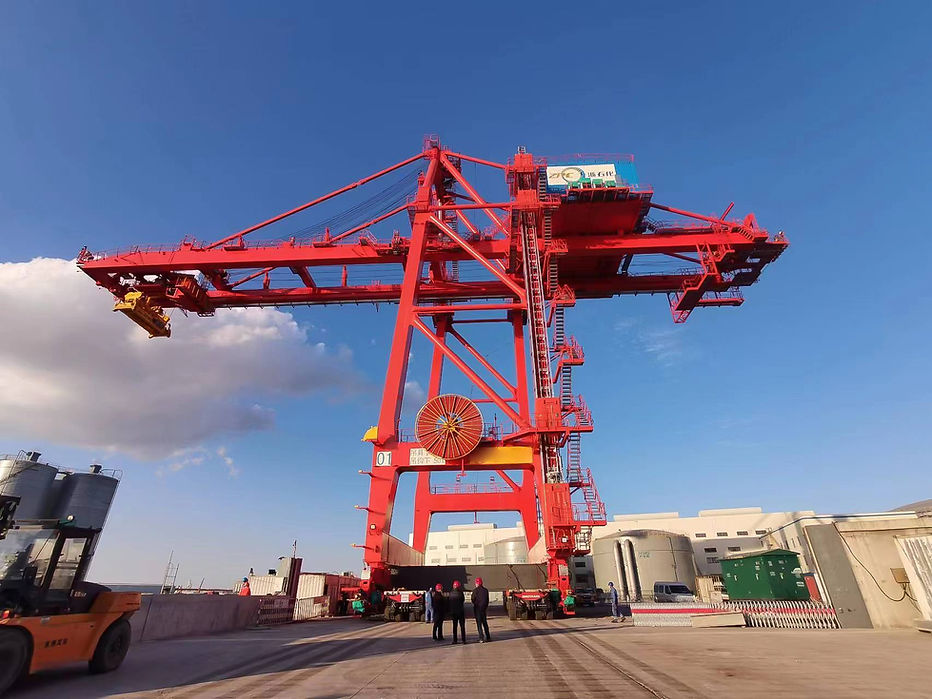

STS Crane
-
Introduction:
-

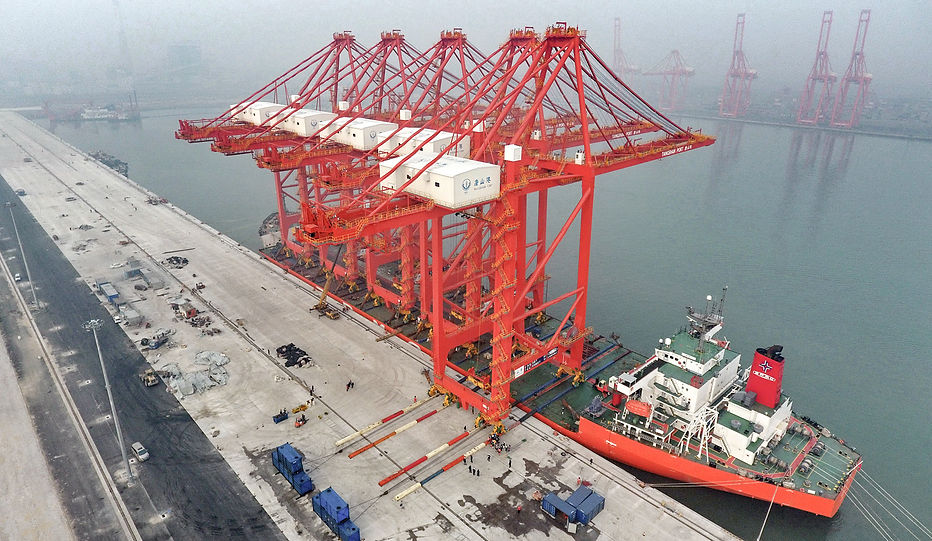

The ship-to-shore gantry crane, also known as an STS or QC crane, consists of a steel structure, hoisting mechanism, luffing (pitching) mechanism, tilting mechanism, crane traveling mechanism, trolley traveling mechanism, machinery room, spreader, electrical equipment, and necessary safety devices and accessories.
-
According to the trolley drive type, ship-to-shore gantry cranes can be classified into three categories: traction cranes, semi-traction cranes, and self-propelled cranes. Equipped with a PLC control system and a CMMS fault detection system, the crane enables automatic fault monitoring, detection, and diagnosis, ensuring safe, efficient, and reliable operation.
​The crane is equipped with comprehensive communication and lighting systems to ensure safe and reliable operation. An anti-sway control system can be installed on the STS crane according to user requirements, further enhancing operational safety and efficiency.
-
Features:
-
Huayuan STS crane offer a variety of single- and double-container spreaders to accommodate different operational scenarios. An optional electronic anti-sway function is available upon customer request, effectively minimizing container sway and enhancing both operational efficiency and stability.
-
Huayuan STS Crane are recognized in the industry for their advanced technology. They feature frequency-conversion multi-transmission feedback systems, which optimize overall machine performance. With high lifting capacity and extended outreach, these cranes cover a wide operating range while collecting real-time positional data to enable intelligent control of the spreader’s trajectory.
-
Structure Advantages
-
The STS crane is equipped with an advanced electrical control system that combines all-digital AC frequency conversion with PLC-based speed regulation. This enables flexible command and precise control of all mechanisms, ensuring every action is accurate and highly coordinated.
-
The lifting mechanism delivers strong power to handle containers ranging from 35 to 65 tons, whether fully loaded or empty, guaranteeing smooth and safe lifting operations. The trolley traveling mechanism allows precise and free movement along the bridge, ensuring accurate horizontal transfer of containers between ship and terminal. The tilting mechanism adjusts the working angle to suit different operational scenarios and ship types, enhancing convenience and efficiency. Meanwhile, the gantry traveling mechanism ensures stable movement of the crane along quay rails, allowing forward and backward operations to meet diverse loading and unloading requirements.
-
The trolley assembly, as a critical component for carrying and moving containers, works in perfect coordination with other systems. Safety devices such as the tilting and hanging cabin protection system act as “guardians,” quickly activating in unexpected situations to prevent damage to the equipment and ensure operational safety. Additionally, a series of auxiliary devices further enhance the crane’s functionality, operational convenience, and overall safety.
-
Parameters:
-
Lifting capacity: 35–65 t (standard), customizable
-
Outreach / Front reach: 18–65 m
-
Span / Rail gauge: 28–36 m
-
Lifting height (above rail): 18–28 m
-
Trolley traveling speed: 80–180 m/min
-
Hoisting speed (laden): 40–80 m/min
-
Hoisting speed (empty): 80–120 m/min
-
Slewing / Trolley luffing: ±15° or ±20° (depending on design)
-
Gantry traveling speed: 20–40 m/min
-
Power supply: 6.6–10 kV AC, 50/60 Hz
-
Control system: PLC intelligent control with AC frequency conversion drives
-
Anti-sway function: Optional electronic anti-sway system
-
Operating duty: A6 (ISO), heavy-duty option available
-
Cabin type: Tilting cabin with intelligent monitoring
-
Safety devices: Overload protection, limit switches, cabin protection, emergency stop, auxiliary devices
-
Applicable spreader: Single or double container spreaders, hook or grab optional
-
Working temperature: -25°C to +45°C (customizable for extreme climates)
