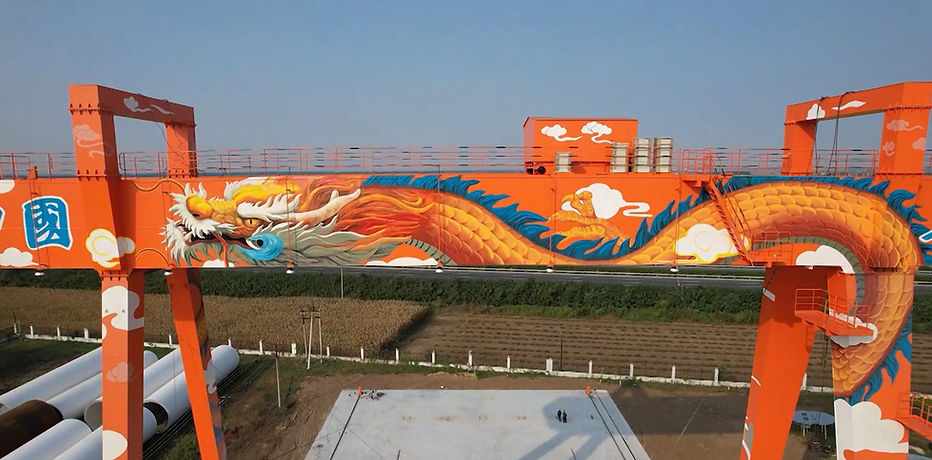

Gantry Crane for Shipyard
-
Introduction:
This gantry crane is a large, powerful crane installed in shipyard for shipbuilding. It is designed to handle extremely heavy loads such as ship components, engines, containers, or even entire sections of a ship during construction, repair, or outfitting.
-
Parameters:
-
Lifting capacity: 50T to 200T or customized.
-
Lifting height: 20 to 100m or customized.
-
Span: 20 to 160m or customized.
-
Lift speed: 1 to 10 m/min (adjustable).
-
Trolley speed: 5 to 60 m/min.
-
Crane speed: 5 to 100 m/min.
-
Options:
-
Structure type: box-girder, truss girder.
-
Leg type: A-frame, U-frame.
-
Power supply: cable reel, festoon, conductor bar, or diesel engine.
-
Control system: cabin control, remote control or automation.
-
Safety system: Overload protection, limit switches, anti-sway, emergency stop
-
Rotation: Slewing of the trolley or hook
-
Features:
-
Wind Resistance: Up to 11 Beaufort scale or more.
-
Corrosion Resistance: Marine-grade painting/coating for saltwater environments.
-
Seismic Design: Earthquake-resistance.
-
Precision Movement: Good for assembling large ship sections.
-
Application:
-
Shipbuilding: Lifting ship sections into place for welding and assembly.
-
Maintenance/Repair: Removing or installing heavy machinery and ship components.
-
Material Handling: Moving steel plates, pipes, and prefabricated blocks.
-
Ship Handling: For ship assembly, launching, etc.
-
Why Work with Huayuan Crane?
-
Rich Experience
-
Customized Design: With 40 years experience in crane manufacturing, Huayuan often provides customized designs that meet specific shipyard requirements, ensuring that the crane fits seamlessly within your operational layout.
-
Good Quality and Innovation: Our gantry cranes are engineered with robust materials and innovative design methods, which helps deliver high lifting capacities while maintaining safety and stability. Integration with digital control systems, remote monitoring, and automation options means the crane can be easily synchronized with other shipyard operations.
-
-
Good Performance
-
Large Lifting Capacity: Designed to handle heavy loads, these cranes are capable of managing the large, complex components typical of shipbuilding projects.
-
Operational Efficiency: With precise control systems and well-tuned motion parameters, Huayuan cranes enhance cycle times and increase throughput in material handling.
-
-
Safety and Compliance
-
Enhanced Safety Systems: Equipped with features such as overload protection, limit switches, and anti-sway mechanisms, these cranes are designed to meet strict safety standards.
-
Compliance with International Standards: Adherence to global quality and safety standards (such as ISO and relevant maritime norms) ensures reliable and predictable performance in harsh marine environments.
-
-
Cost-Effectiveness
-
Efficient Energy Consumption: Energy-efficient power systems and controls help reduce operational costs over the lifecycle of the crane.
-
Competitive Investment: The balance between high quality and competitive pricing makes Huayuan’s gantry cranes a cost-effective solution for shipyards aiming to optimize capital expenditure and return on investment.
-
-
5. After-Sales Support and Service
-
Strong Technical Support: Huayuan typically backs their equipment with comprehensive support, including on-site installation, training, and maintenance services.
-
Proven Track Record: A history of successful implementations in demanding shipyard environments adds confidence in the product’s longevity and performance.
-
