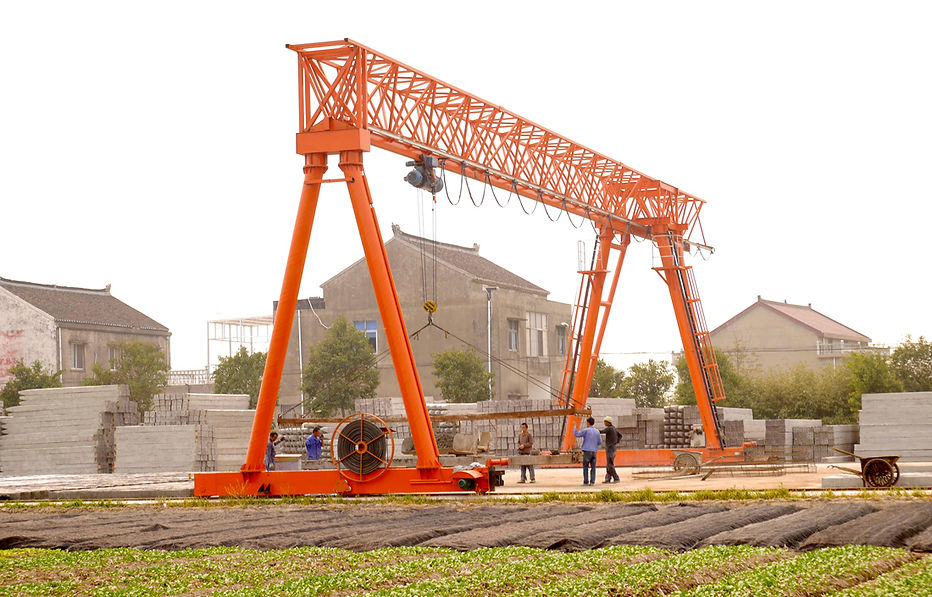

Truss Girder Gantry Crane

  • Introduction:

The truss girder gantry cranes are designed with a truss frame or lattice frame. Thus there is a smaller weight and wind resistance with a sturdy structure that is not easy to shake or deform during use. it is lightweight and easy to transport and install.

This gantry cane is widely applicable for lifting, transportation, and loading/unloading work in outdoor operation sites such as subway construction, construction sites, logistics transportation, railways and highways, warehouses and freight yards, cement product factories, mechanical assembly plants, hydropower stations, etc. It is also suitable for working in indoor workshops.

  • Parameters:

  1. Lifting capacity: 3T to 20T;

  2. Span: 12m to 30m;

  3. Power supply: 380V/400V/415V/660V  50HZ/60HZ;

  4. Working environment temperature: -20 ℃~40 ℃.

  • Features:

  1. It is a small and medium-sized gantry crane that runs on rails and is used in conjunction with CD1 MD1 wire rope electric hoists.

  2. The main beam and supporting legs are welded into a truss structure using steel profiles.

  3. The truss-type gantry crane adopts a lightweight truss structure.

  4. The truss-type gantry crane reduces the influence of wind on the crane, so it is especially suitable for coastal and plain areas with strong winds.
